1 - 8t

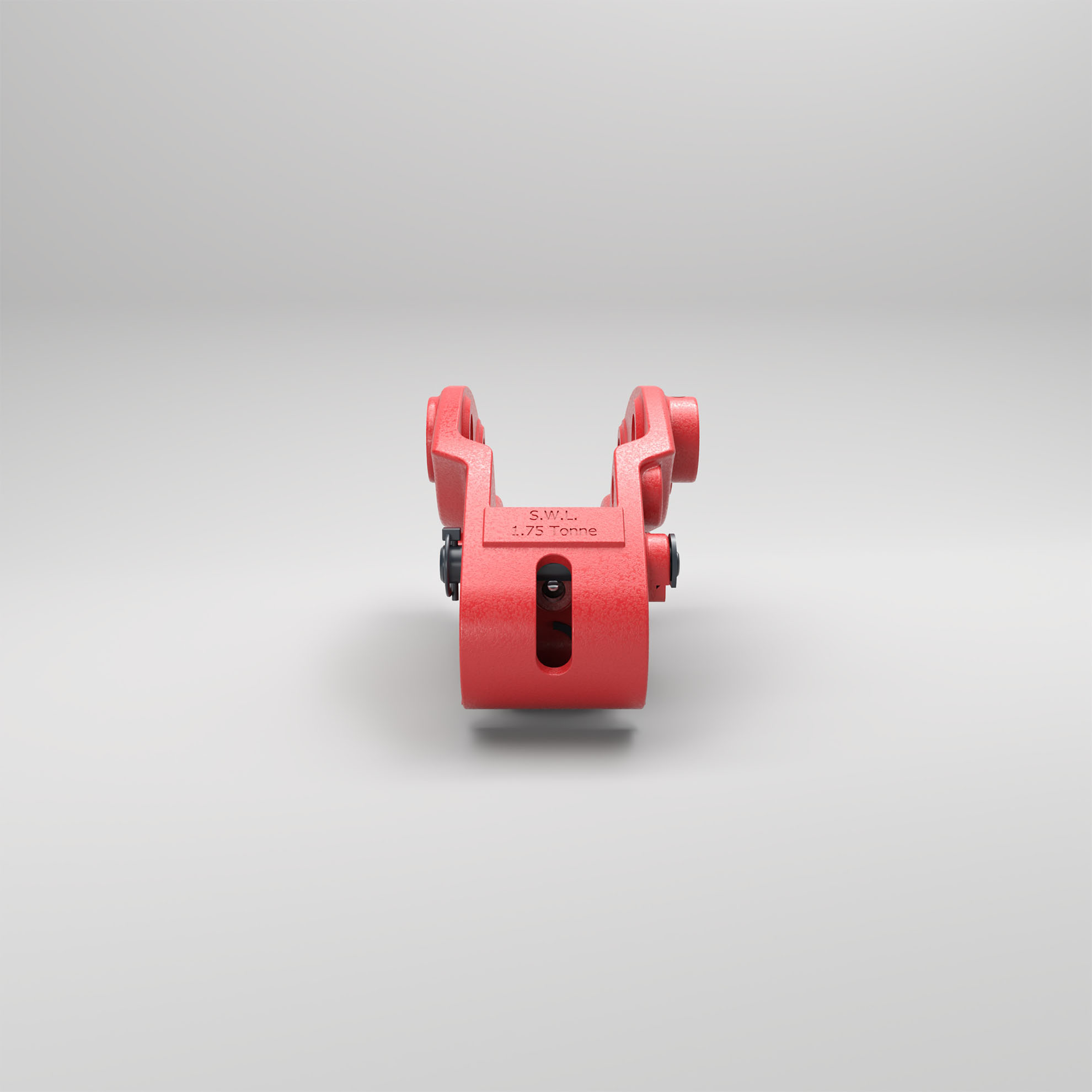

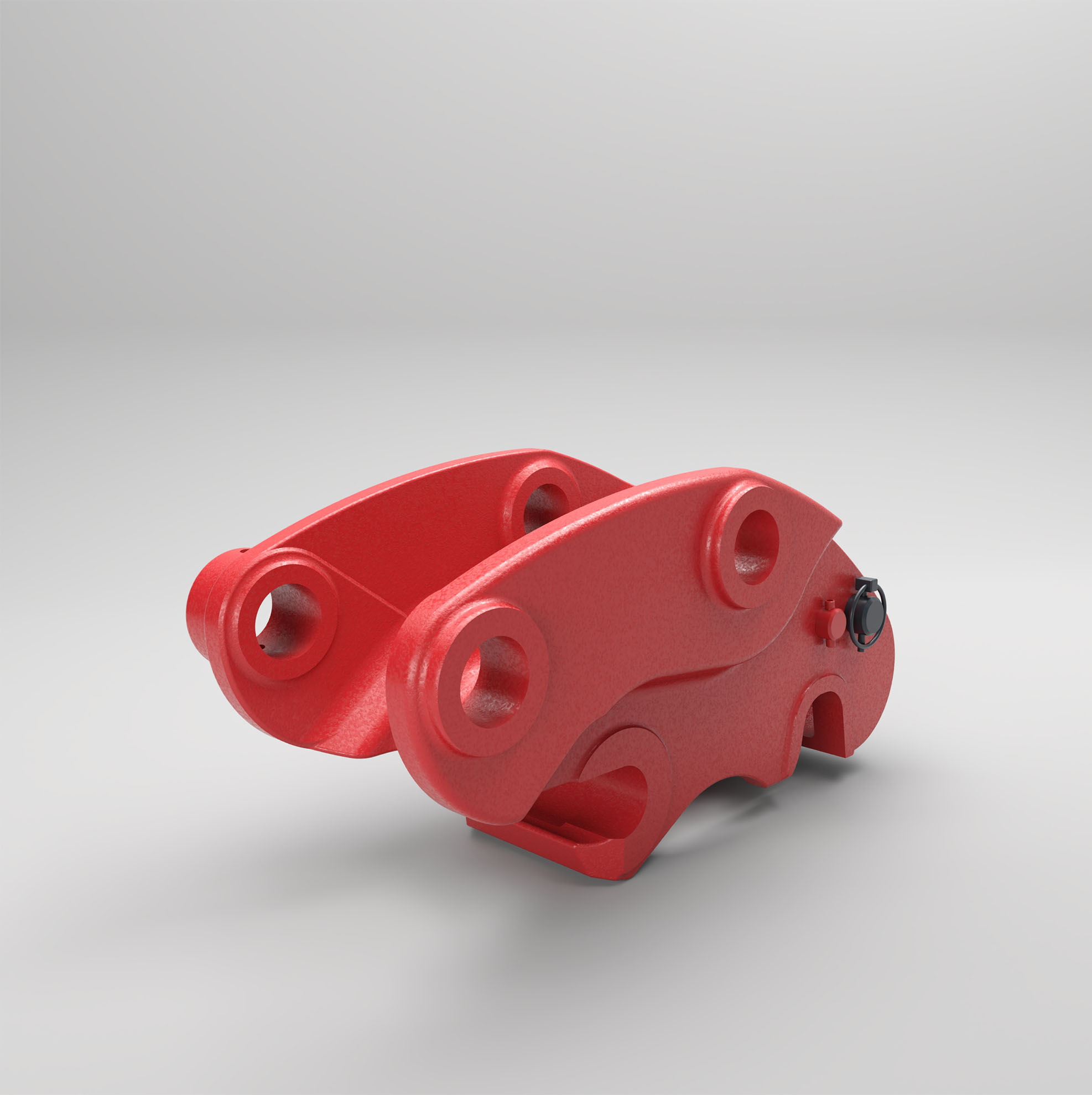

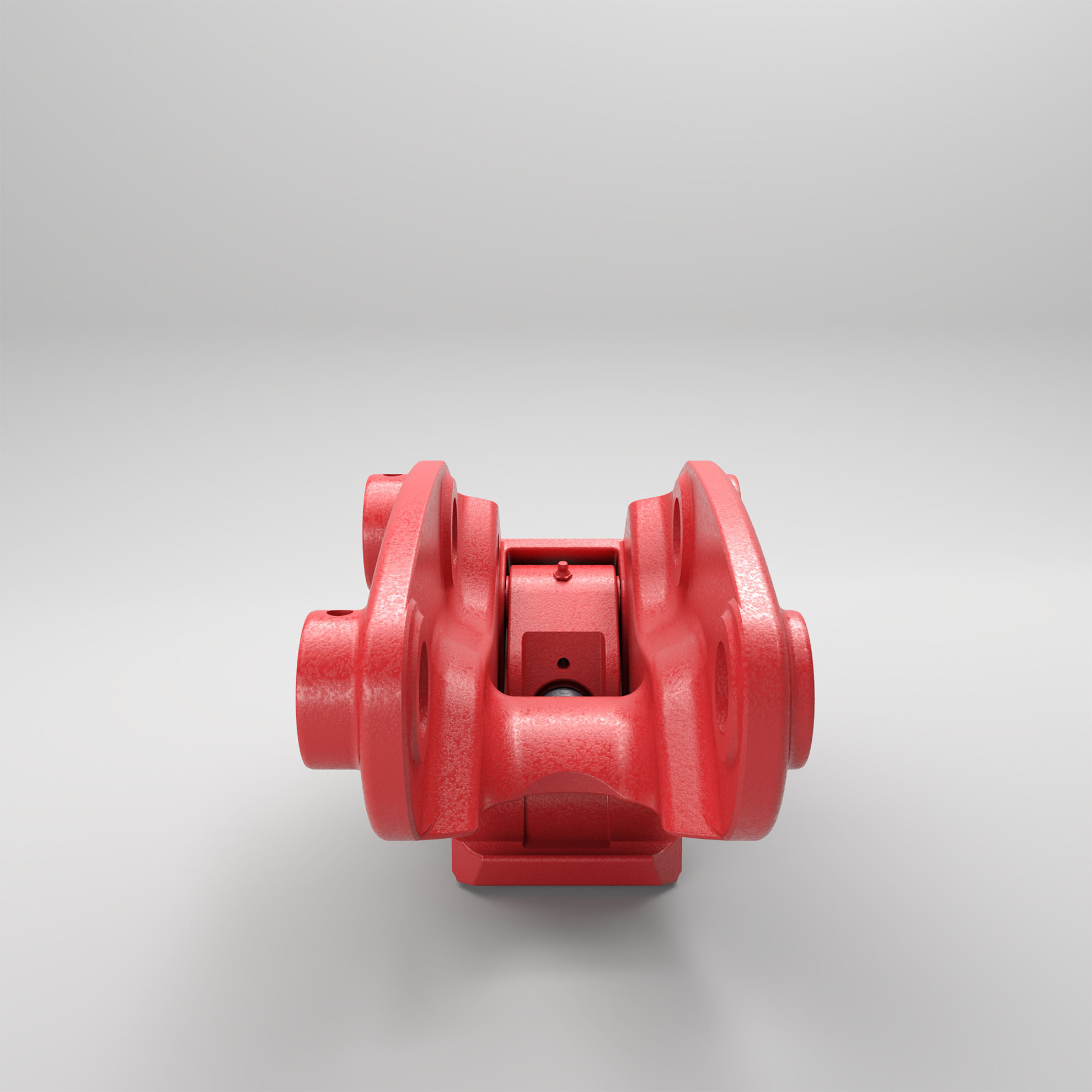

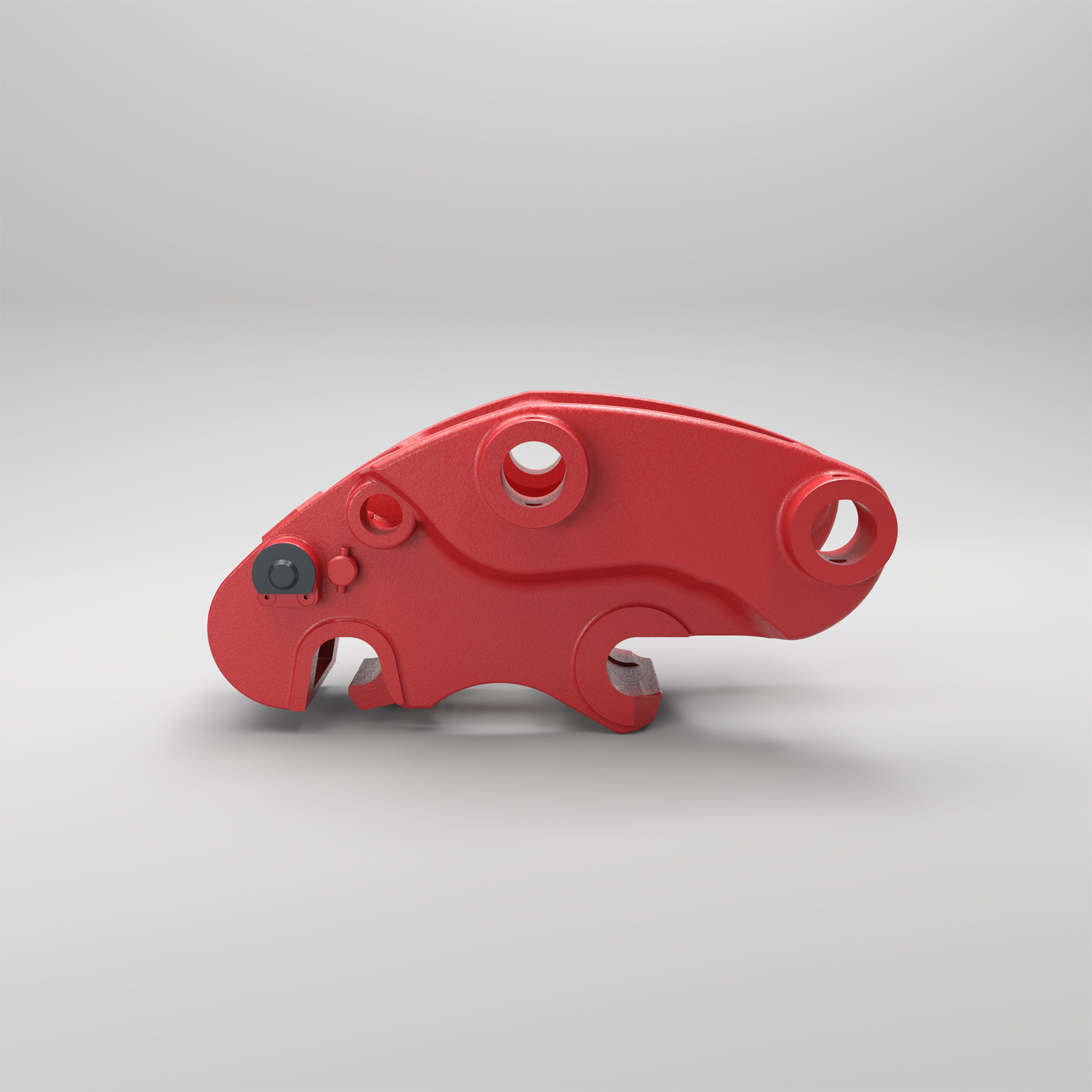

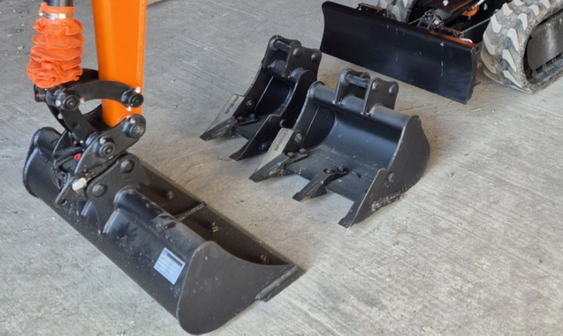

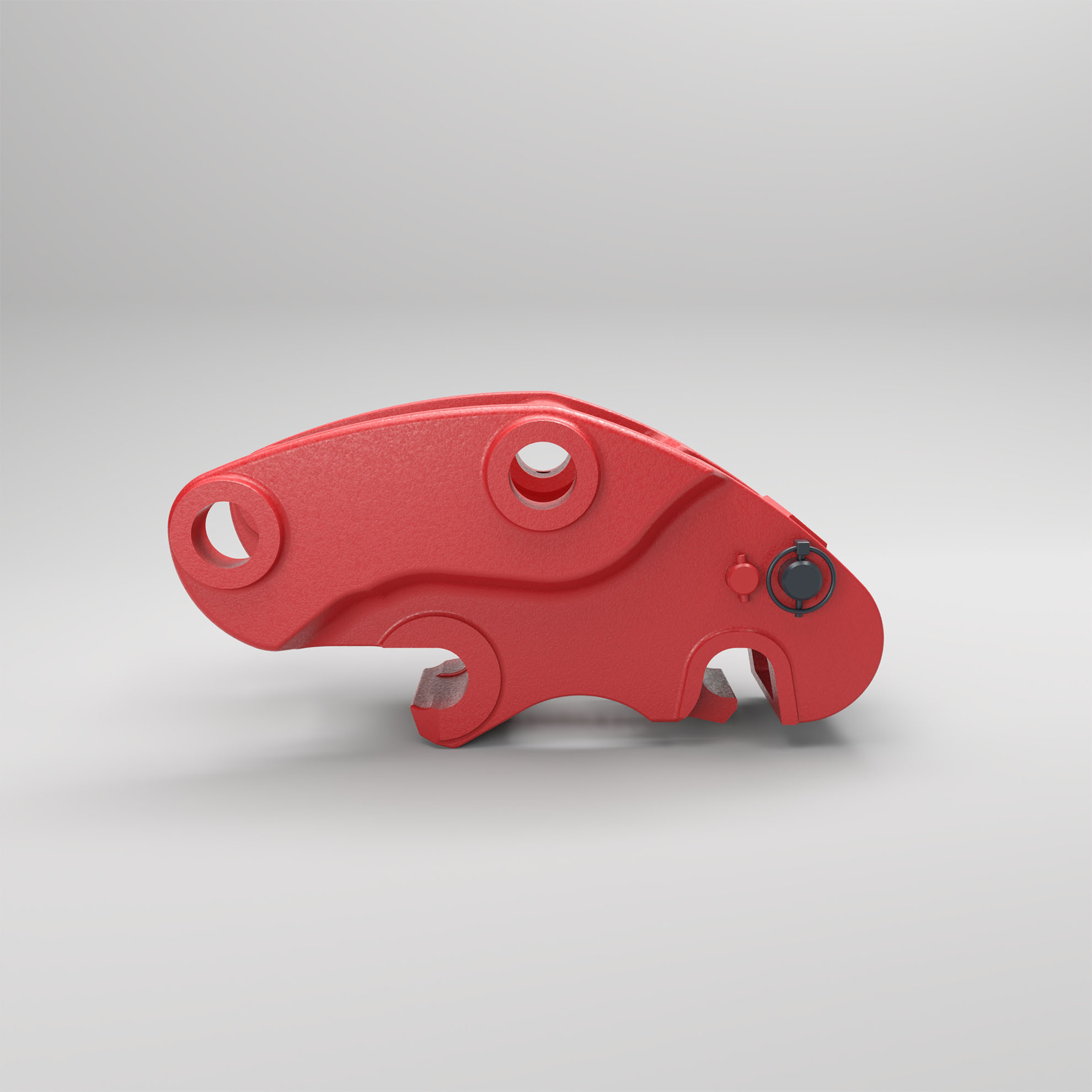

Without the need for hydraulic or electrical connection to excavators, Miller’s manual hitch is an ideal – and cost effective – solution allowing operators to very easily manually align and secure a wide range of attachments with their machines. Designed with fewer components, increasing reliability, the manual hitch delivers versatility and adaptability allowing operators to get the job done efficiently.
Manual Changeovers
Single Pickup
Single locking
RECOMMENDED APPLICATIONS:
Landscaping & small-scale construction, trenching & utilities, property maintenance & road repair & more.
KEY SPECIFICATIONS
Range | Excavator Weight | Weight | Pin Diameter | Pin Centres | Pick up Width |
|---|---|---|---|---|---|
Range 0A | 1T | 16.5kg | 30mm | 85 - 118mm | 96mm |
Range 0B | 1 - 2T | 19kg | 30mm | 121 - 161mm | 103mm |
Range 1A | 2T | 24kg | 35mm | 125 - 150mm | 122mm |
Range 1B | 2 - 4T | 29kg | 35mm | 165 - 213mm | 117mm |
2 - 4T | 35kg | 37.85 & 40mm | 172 - 215mm | 117mm | |
Range 2A | 5T | 57kg | 454mm | 220 - 285mm | 155mm |

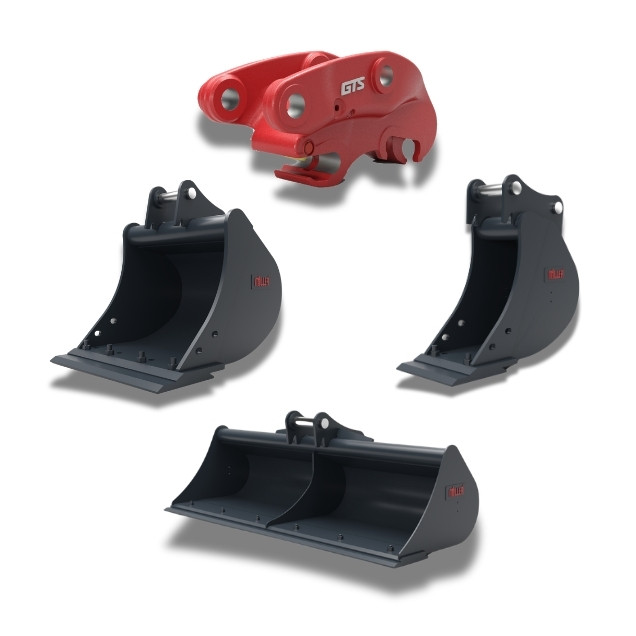

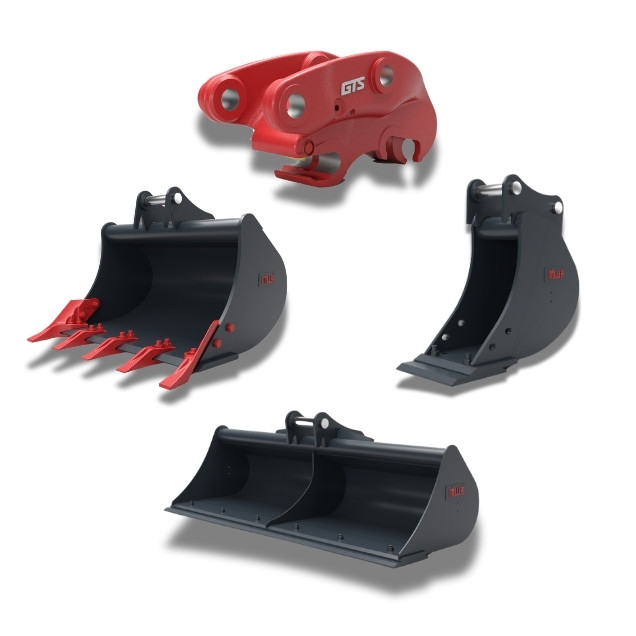

Upgrade to a hydraulic hitch, suitable for 1-20t machines, complimented by a set of buckets, which are designed to get your machines ready to dig.
Get Ready to DigFEATURES

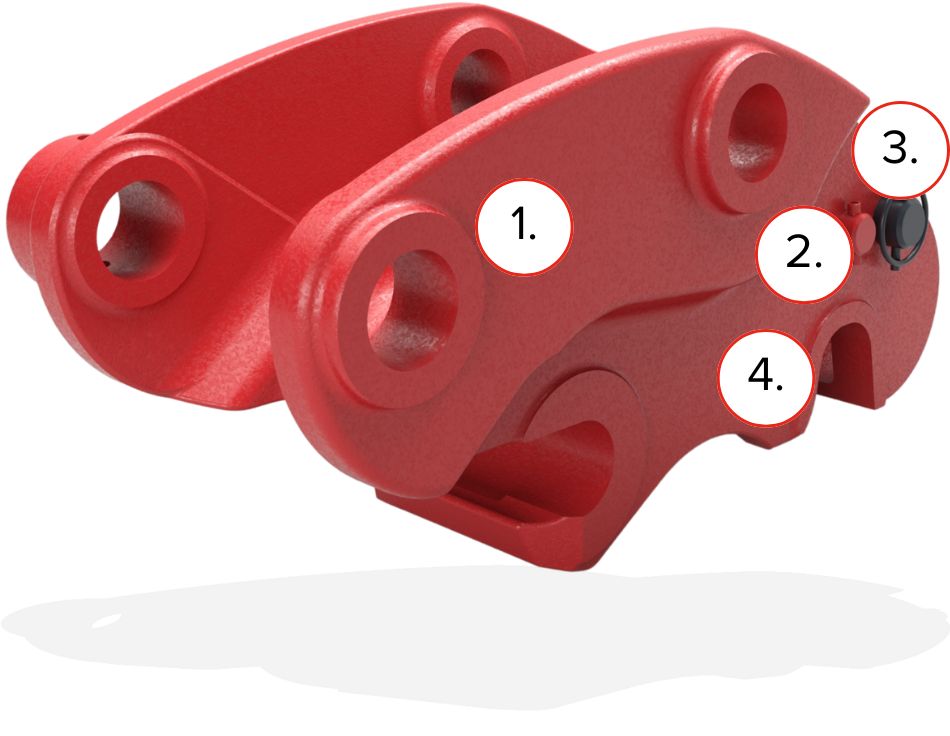

Our manual hitches are tailor designed to meet the specifications of each OEM machine. An ideal solution for pick-ups of single OEM attachments.
The innovative streamlined design delivers a shorter pin-to-point measurement to drive maximum breakout force for greater productivity and efficiency.
Locks the hook in place after engagement, ensuring that the attachment is held in place even under extreme loading conditions.
Rated to meet OEM’s safe working load limits, designed for lifting applications, the lifting eye ensures safe weight handling.
An ISO13031 compliant system, allowing for the engagement and disengagement of the attachment to be manually activated at the hitch itself.
