1 - 6t

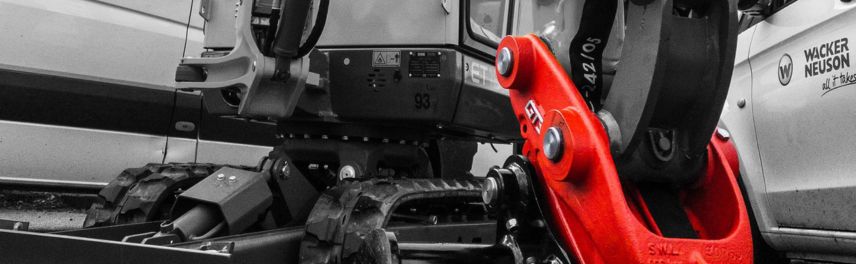

Wholly cast, Miller’s GTS is the lightest – yet strongest and safest – fully hydraulic hitch on the market. Enabling smaller excavators to achieve high speed connections of only 18 seconds in comparison to 20 minutes to directly mounting an attachment, the GTS allows operators to pick up the widest range of OEM attachments very easily.
Twin-lock Front and Rear
In-Cab Attachment Changeovers
Universal OEM Pickup
ISO13031/ AS13031 Compliant
RECOMMENDED APPLICATIONS:

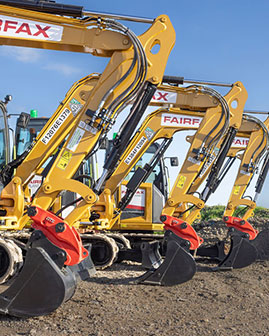

Landscaping & small-scale construction, trenching & utilities, property maintenance & road repair & more
KEY SPECIFICATIONS
Range | Excavator Mass (t) | Hitch Mass (kg) | Pin Diameter (mm) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|
Range 0A | 1-1.5 | 15.7-17.5 | 30 | 94 / 96 | 85 - 118 |
Range 0B | 1.5 - 2 | 17.9 - 21.0 | 30 | 103 | 121 - 161 |
Range 1A | 2 | 23.2 - 26.9 | 35 | 109 / 122 | 125 - 150 |
Range 1B02 | 2 - 3 | 28.6 - 31.5 | 35 | 117 | 160 - 200 |
Range 1B01 | 3 - 3.5 | 34.4 - 35.7 | 38 / 40 | 117 | 172 - 215 |
Range 2A | 5 | 55.6 - 58.1 | 45 | 144 | 220 - 285 |
Our GT Series quick hitches are available with a five-year extended warranty, allowing you to achieve full peace of mind, saving up to 100% of all parts and labour costs.
Upgrade Today

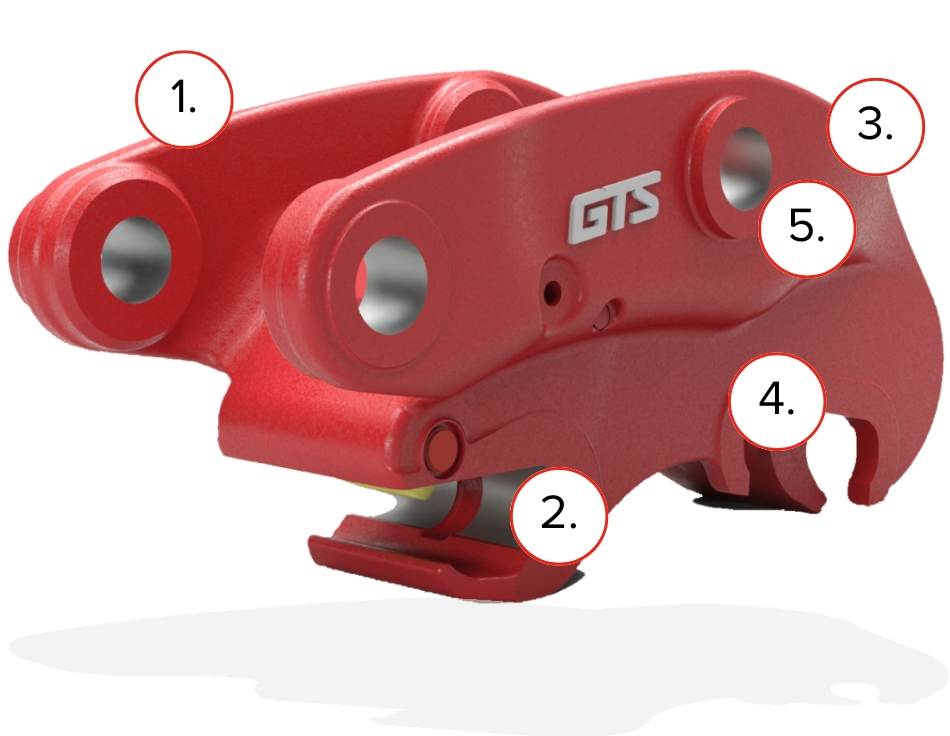

FEATURES

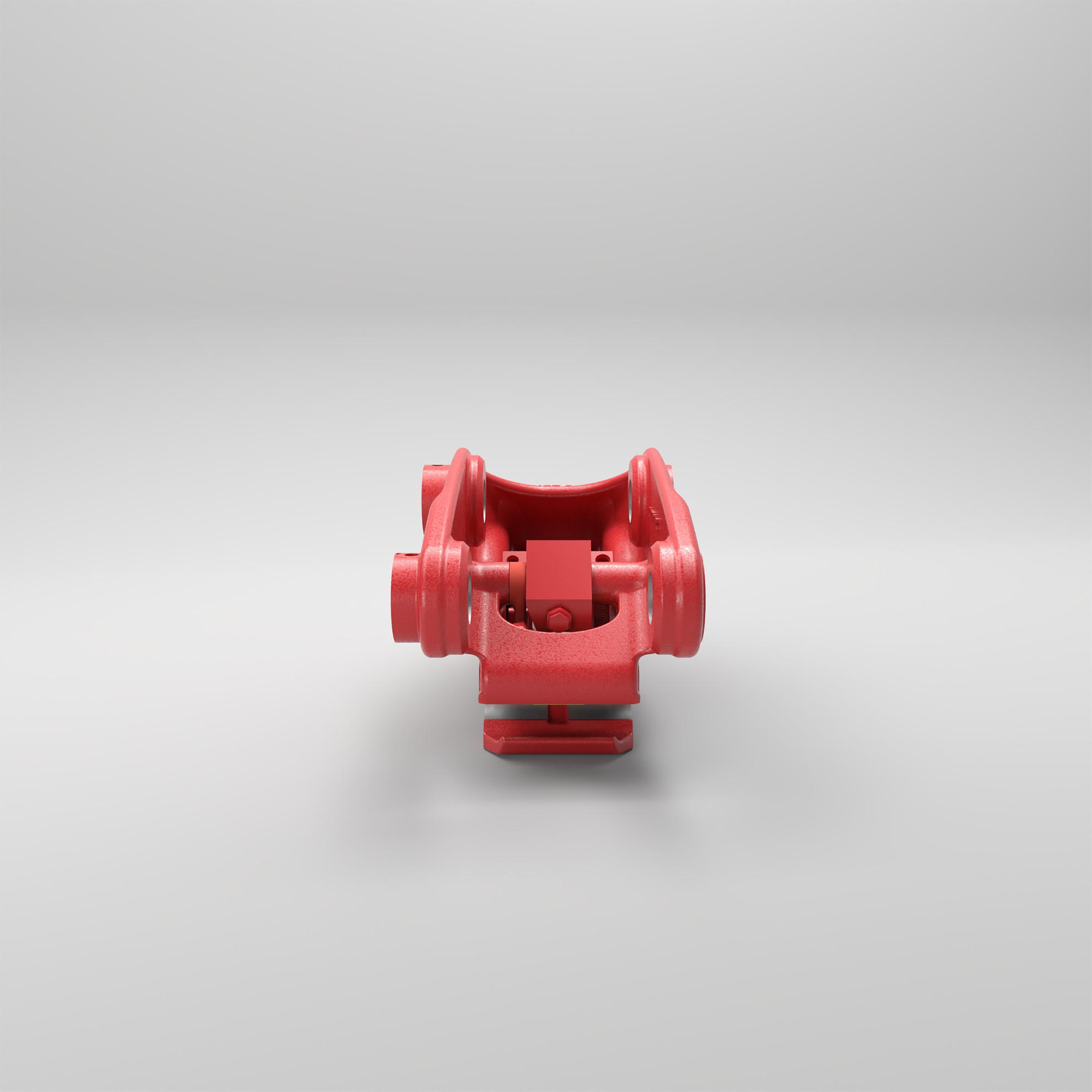

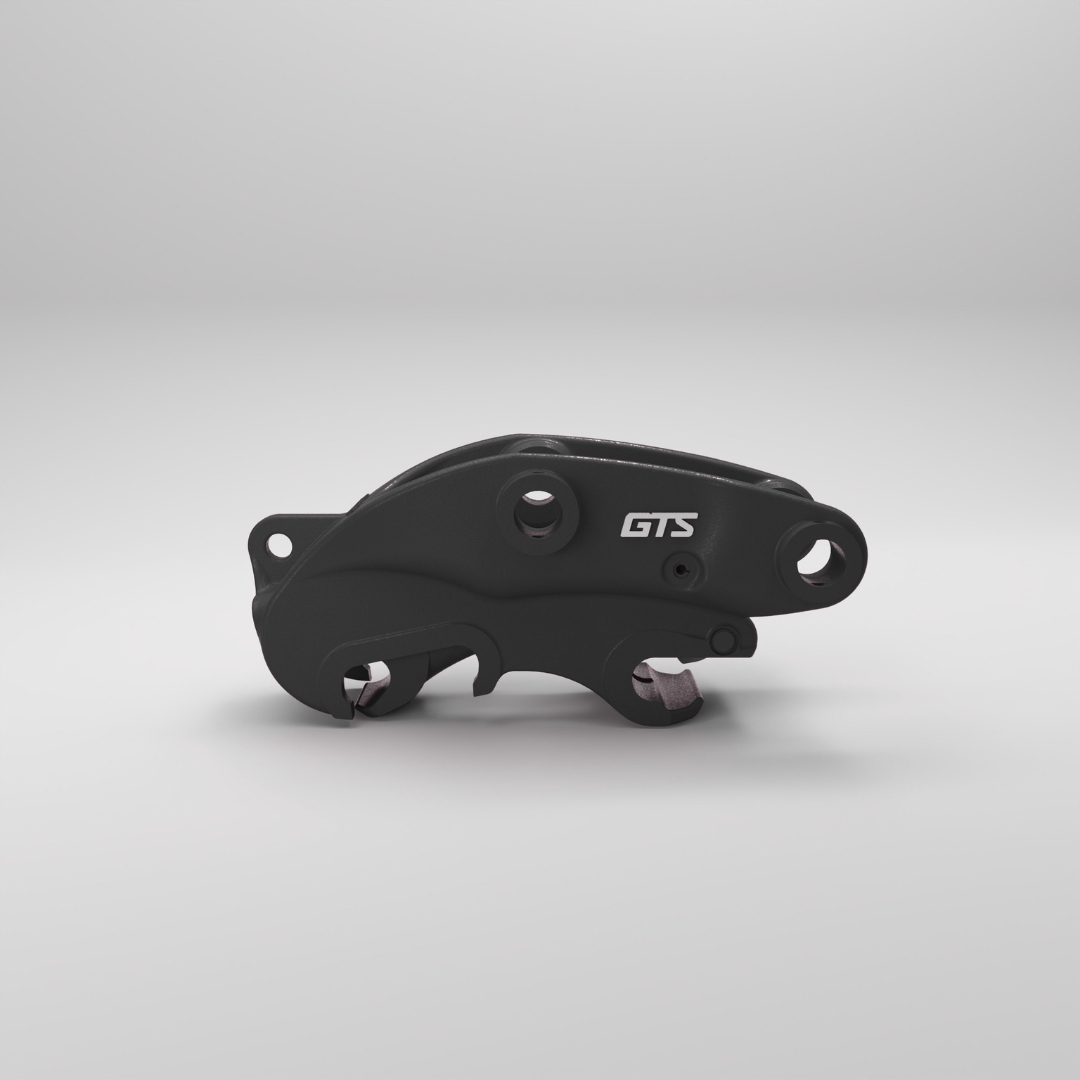

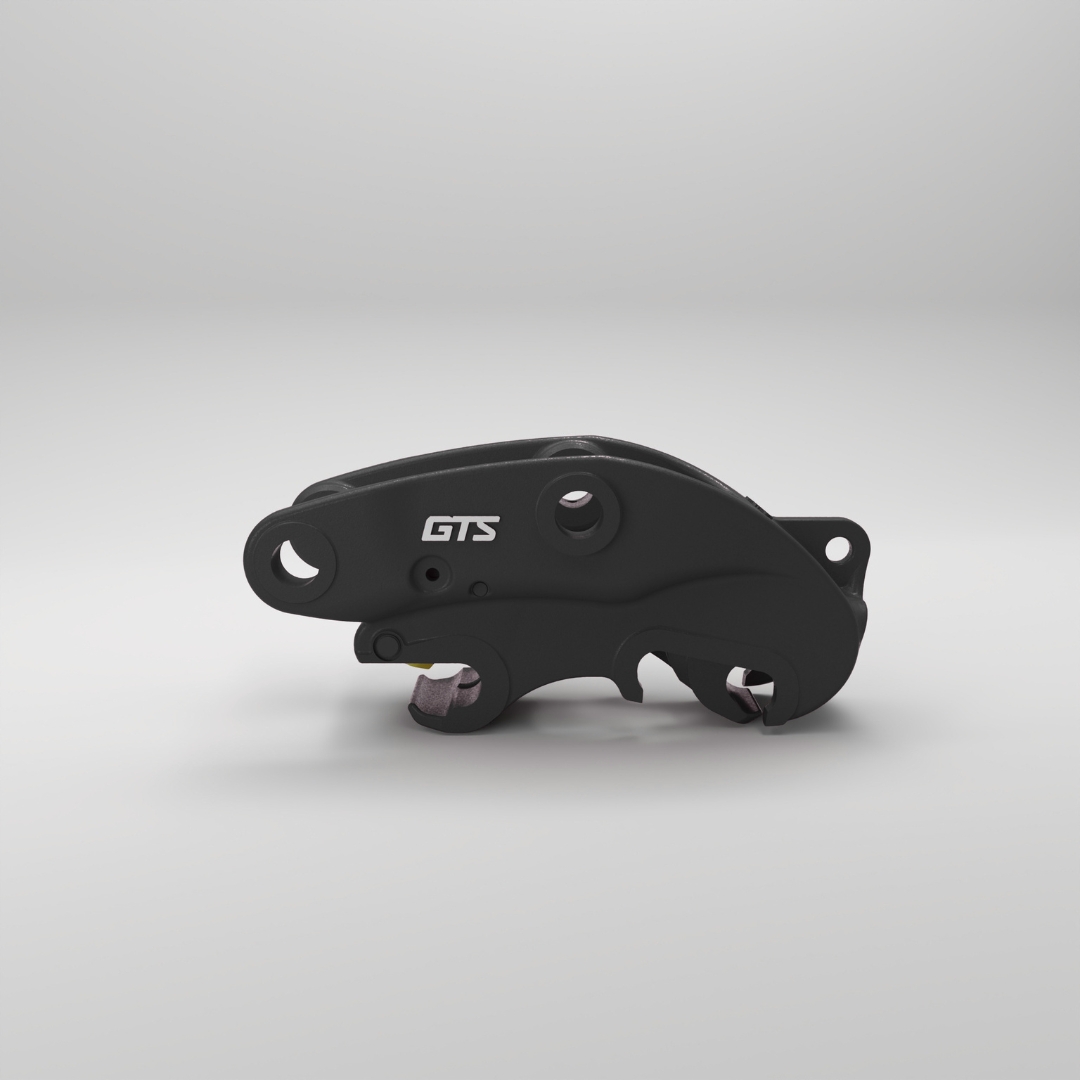

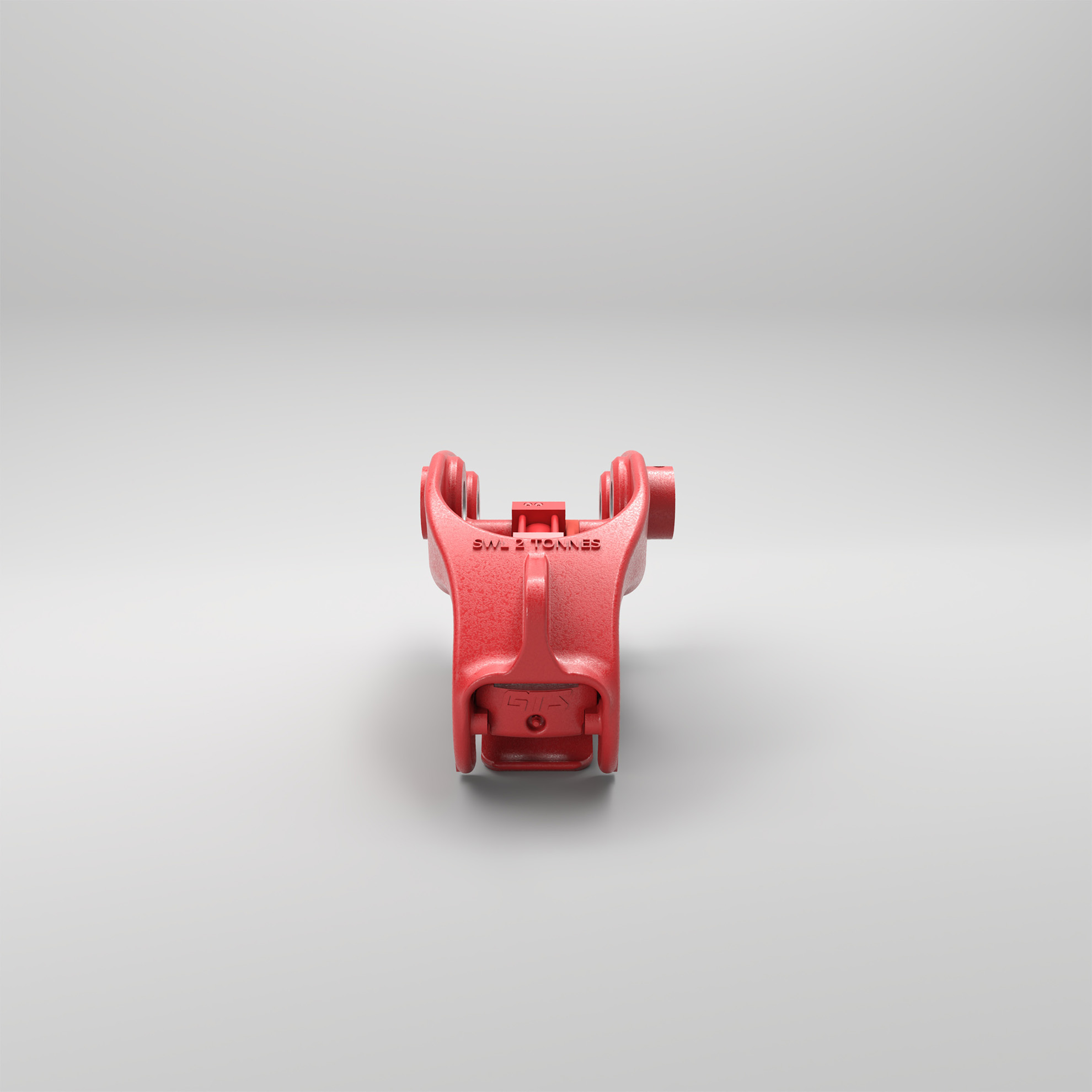

Designed from the inside out, our GTS comprises only four components. In comparison, many hitches on the market can have up to 15 components. As such, this streamlined design reduces any repairs and maintenance, increasing productivity.
A compact, low-profile design enables machines to maintain strong breakout forces and stability, which reduces fuel consumption.
An independent, bi-directional mechanical locking system keeps the front pin engaged on smaller machines for safe, quick attachment changes.
An OEM-rated lifting eye for secure weight handling on compact excavators, making lifting tasks more
A fully compliant ISO13031/AS13031 hook mechanism that acts as a mechanical fallback on small machines, protecting against any hydraulic failure.

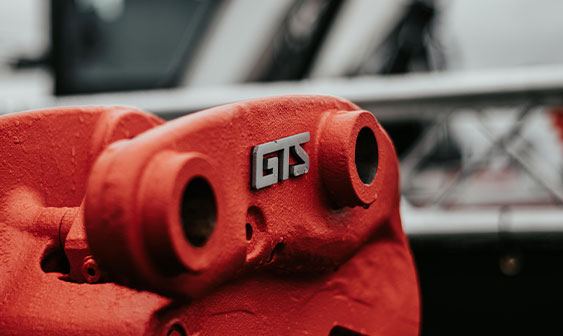

A uniquely curved, lightweight cast frame made from heat-treated steel, reducing overall hitch weight for minimal fuel burn and easy manoeuvrability on small excavators.
