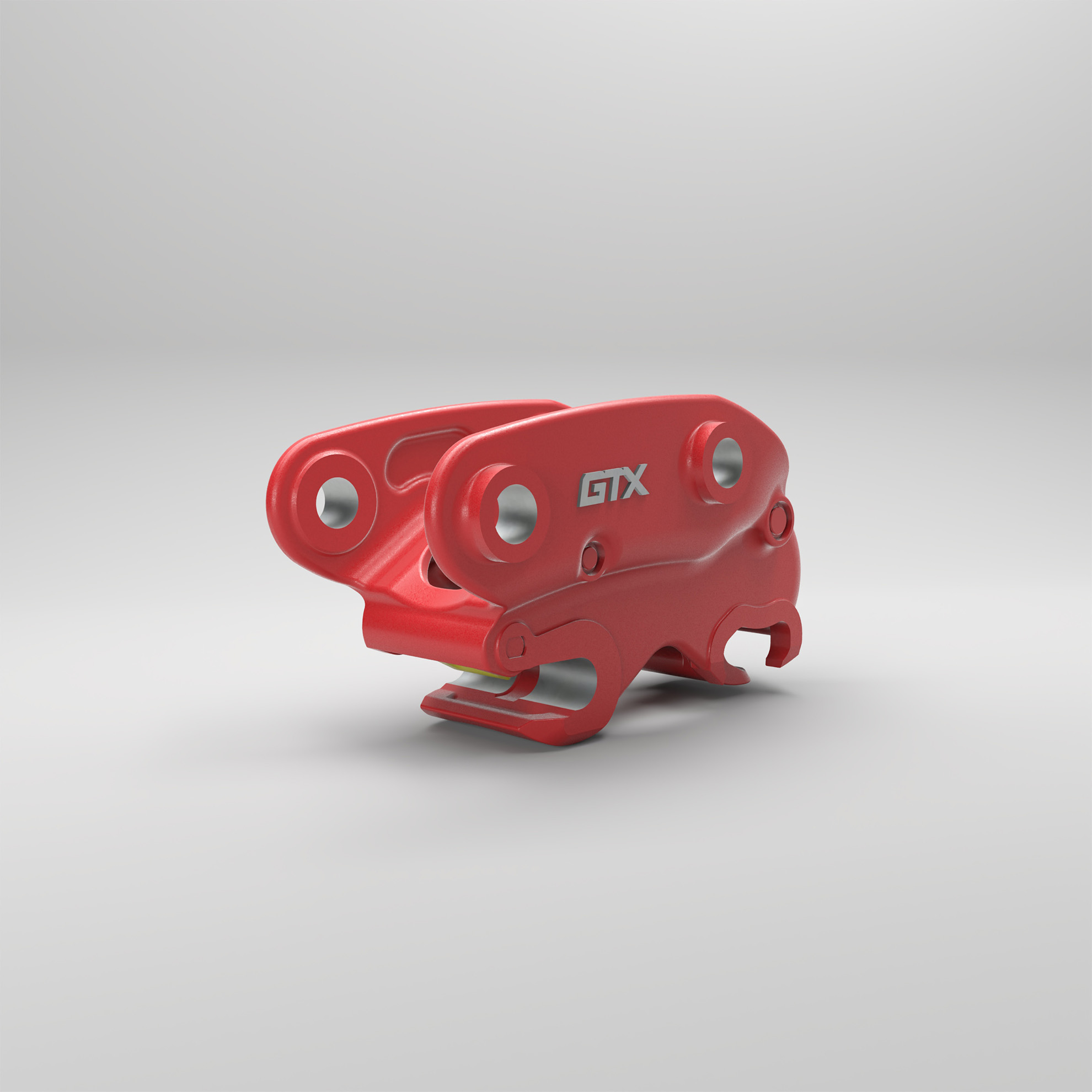

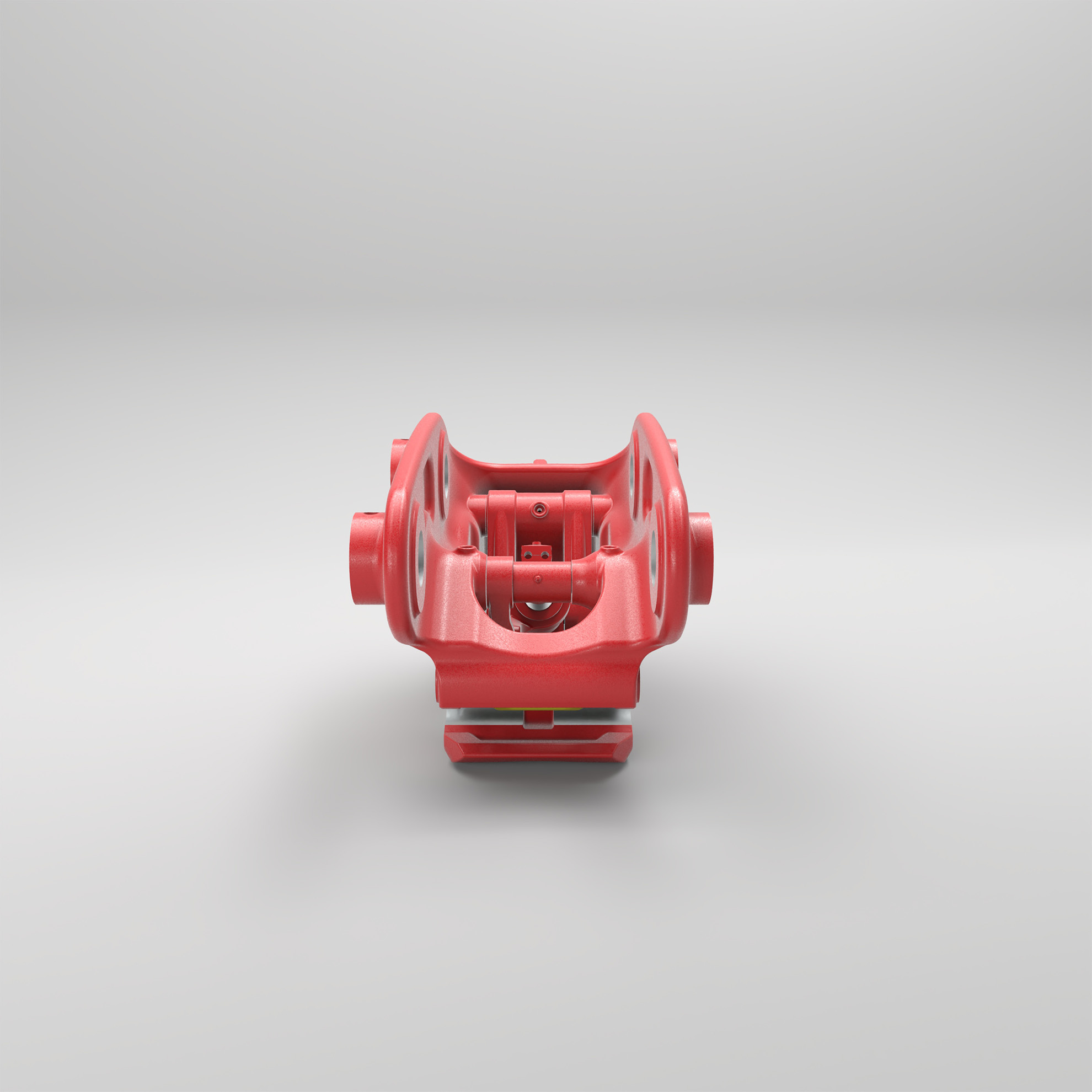

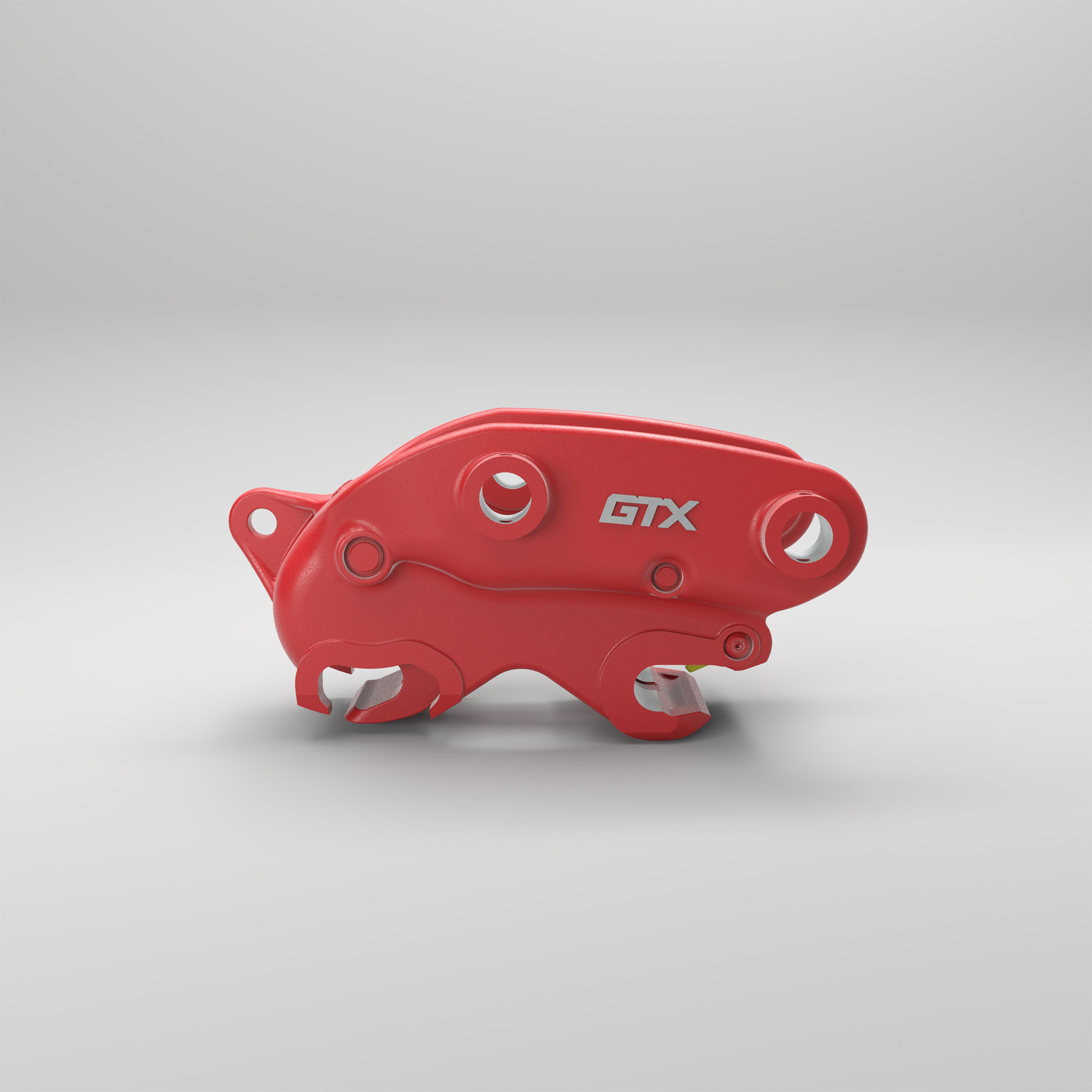

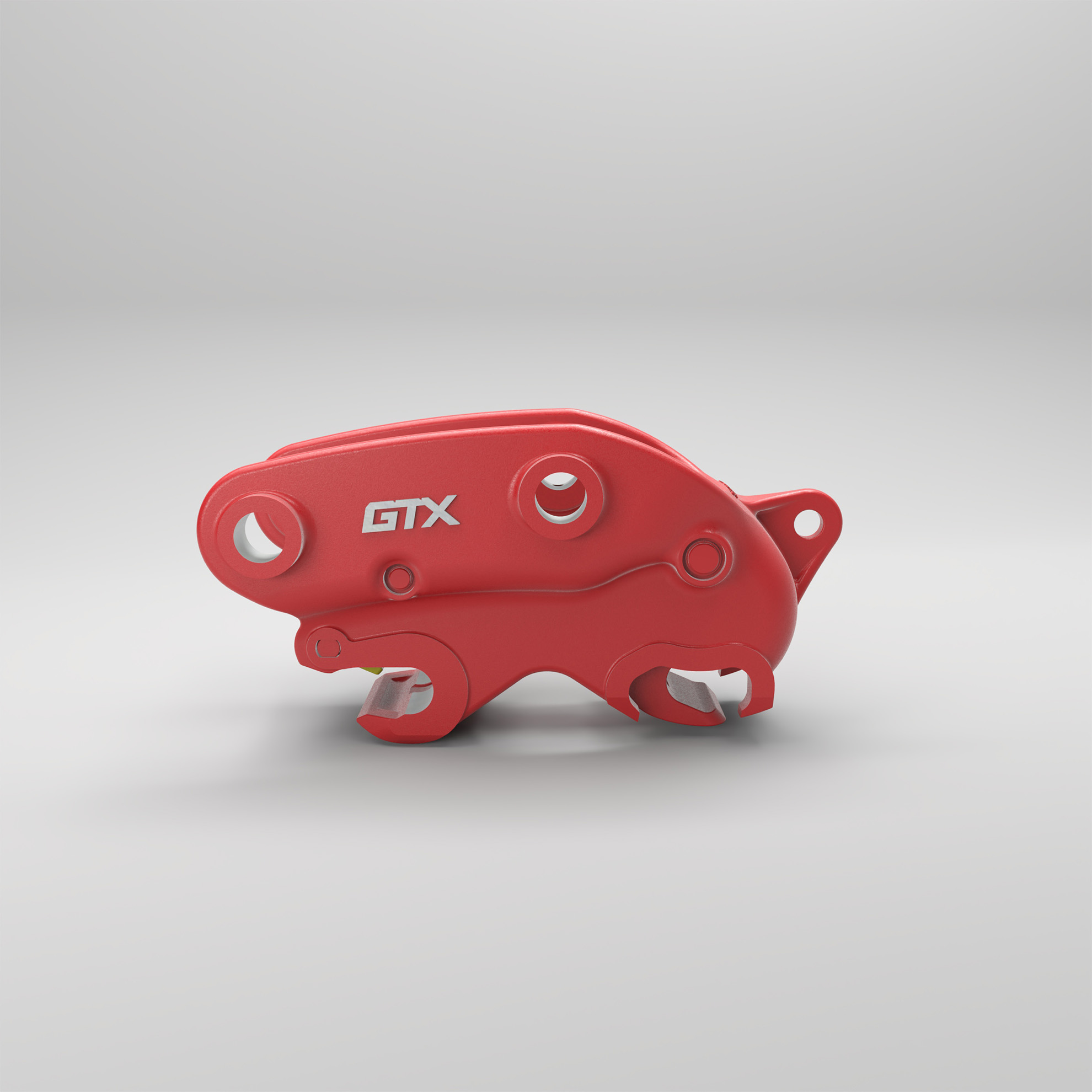

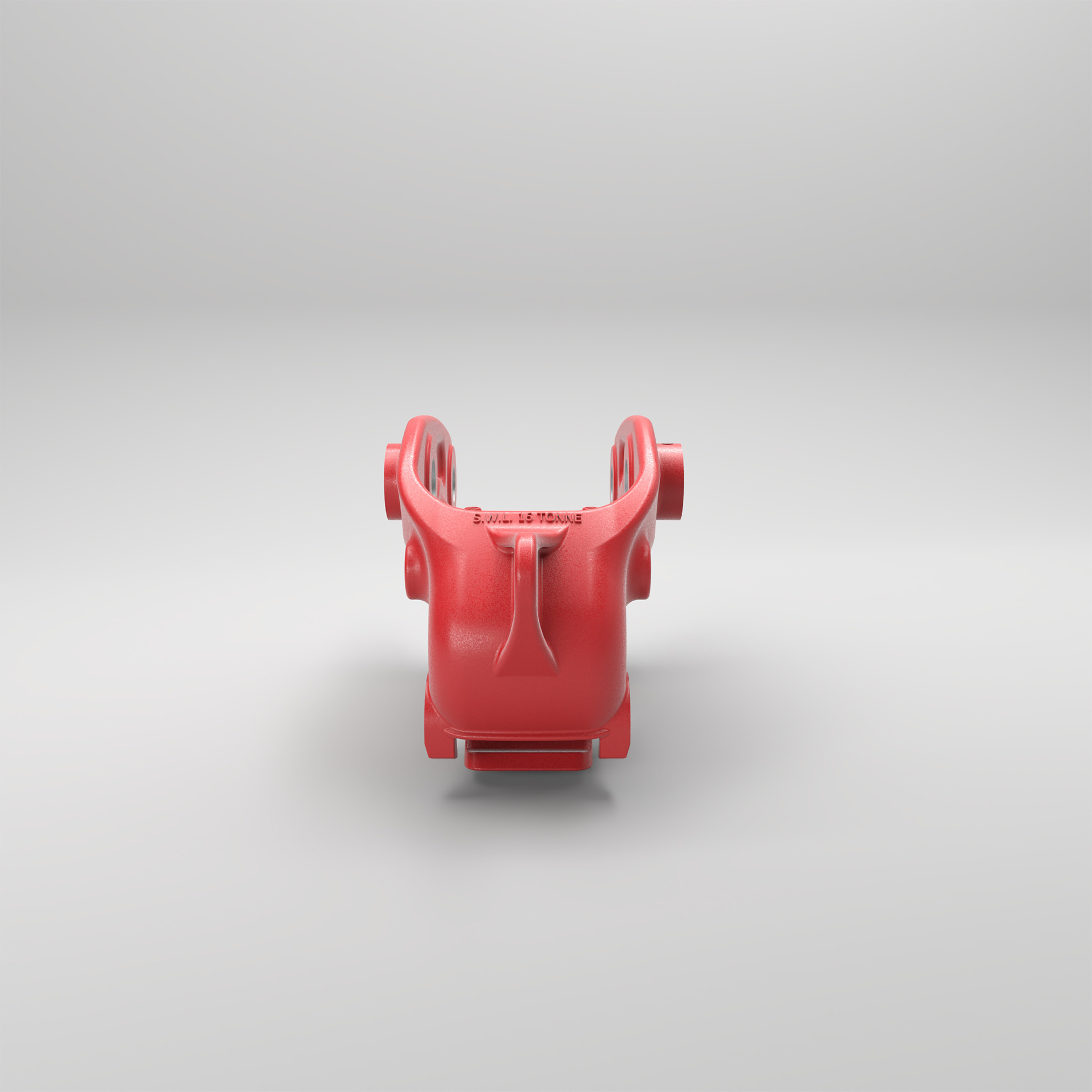

GTX

QUICK HYDRAULIC

8 - 50t

Increase machine productivity with Miller’s fully hydraulic quick hitch – the GTX – designed to transform excavators into secure and reliable multitool carriers. Delivering high speed connections, the low-profile design offers a shorter pin to point measurement to drive maximum breakout force for greater productivity and efficiency.

Twin-lock Front and Rear

Twin-lock Front and Rear

In-Cab Attachment Changeovers

In-Cab Attachment Changeovers

Universal OEM Pickup

Universal OEM Pickup

ISO13031/ AS13031 Compliant

ISO13031/ AS13031 Compliant

RECOMMENDED APPLICATIONS:

General construction & earthworks, quarry & aggregate operations, demolition & site clearance.

Select your machine, make and model to determine which GTX range which fit perfectly with your machine.

FIND THE RIGHT SIZE

MATCH YOUR
MACHINE

Specification

Part No.
Pin Diameter (A) (mm)
Pin Centres (B) (mm)
Pickup Spread (C) (mm)
Inner Arm Width (D) (mm)
Pickup Width (E) (mm)
Offset Height (F) (mm)
Weight (kg)
Tilt Angle (Degrees)
Lifting Eye Rating (kg)
Lifting Eye Diameter (mm)

EXTEND YOUR WARRANTY
TO FIVE YEARS

Our GT series quick hitches are available with a five-year extended warranty, allowing you to achieve full peace of mind, saving up to 100% of all parts and labour costs.

Miller GUARD

FEATURES

DELIVERING
HEAVY DUTY
PERFORMANCE

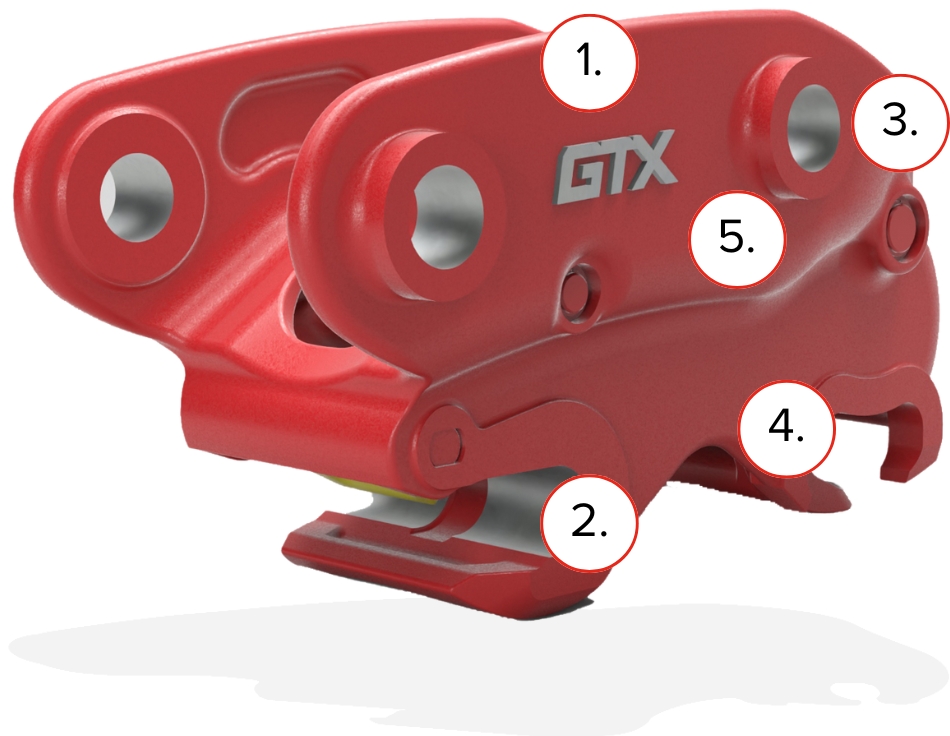

Designed from the inside out, our GTX comprises only four components. In comparison, many hitches on the market can have up to 15 components. As such, this effective and streamlined design reduces any repairs and maintenance, increasing productivity and machine working time.

  • 1
    LOWER OFFSET DESIGN

    A heavy-duty, low-profile design that maximises breakout force, boosting overall digging performance without compromising on strength.

  • 2
    FRONT LATCH

    An independent, bi-directional front latch incorporating a robust locking system designed to handle higher loads on large excavators, ensuring safe operation in demanding conditions.

  • 3
    LIFTING EYE

    A heavy-duty lifting eye rated for high-capacity loads, giving large excavators the versatility to lift and place materials with ease.

  • 4
    ISO Hydro-pneumatic Cylinder

    A dual-lock cylinder system compliant with global safety standards, delivering extra fail-safe security for heavier digging and demolition attachments.

  • 5
    CAST FRAME

    A high-strength, curved cast frame engineered from heat-treated steel to handle substantial forces, offering durability and extended wear life for large excavators.

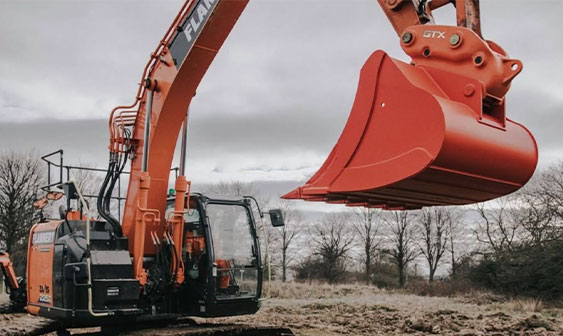

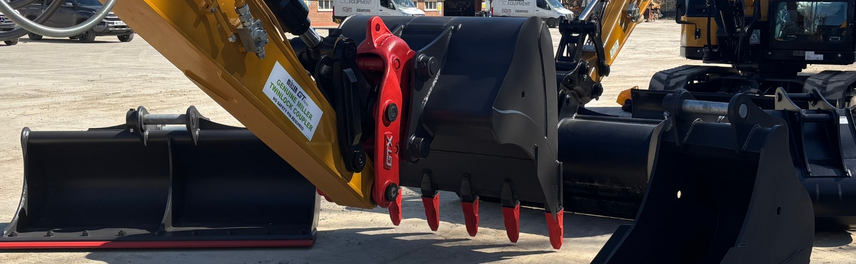

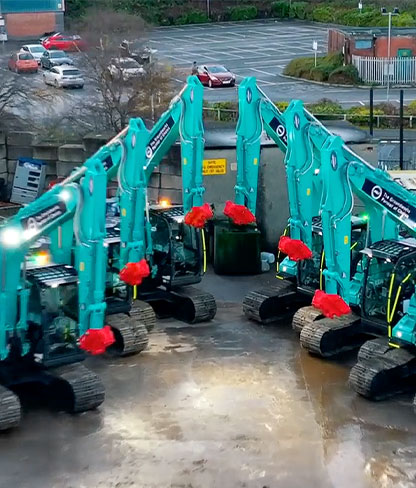

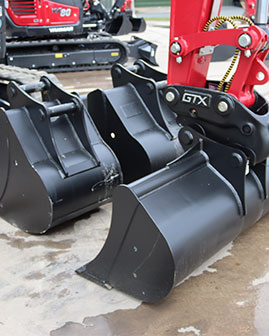

IN
ACTION
