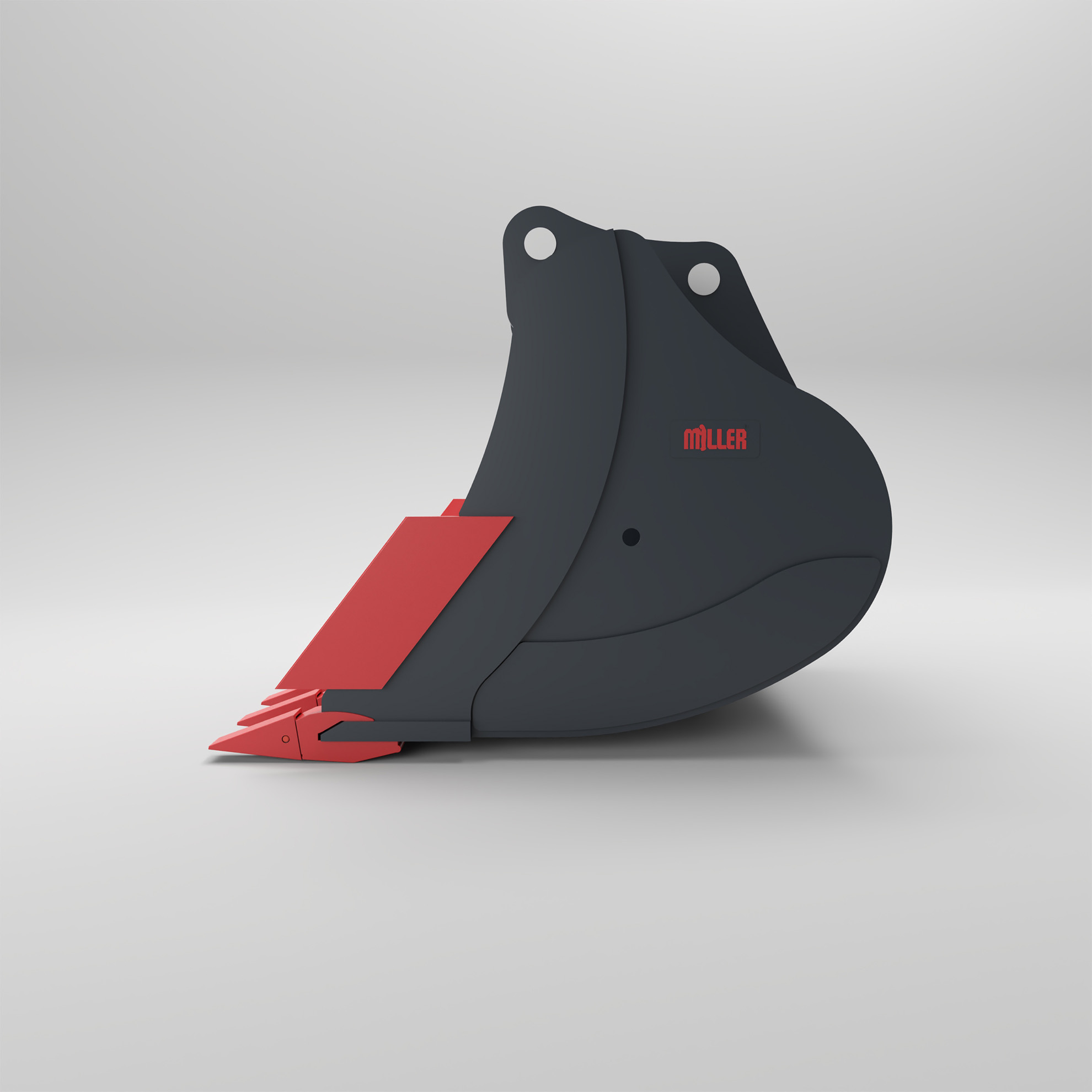

Digging Bucket - Image 2

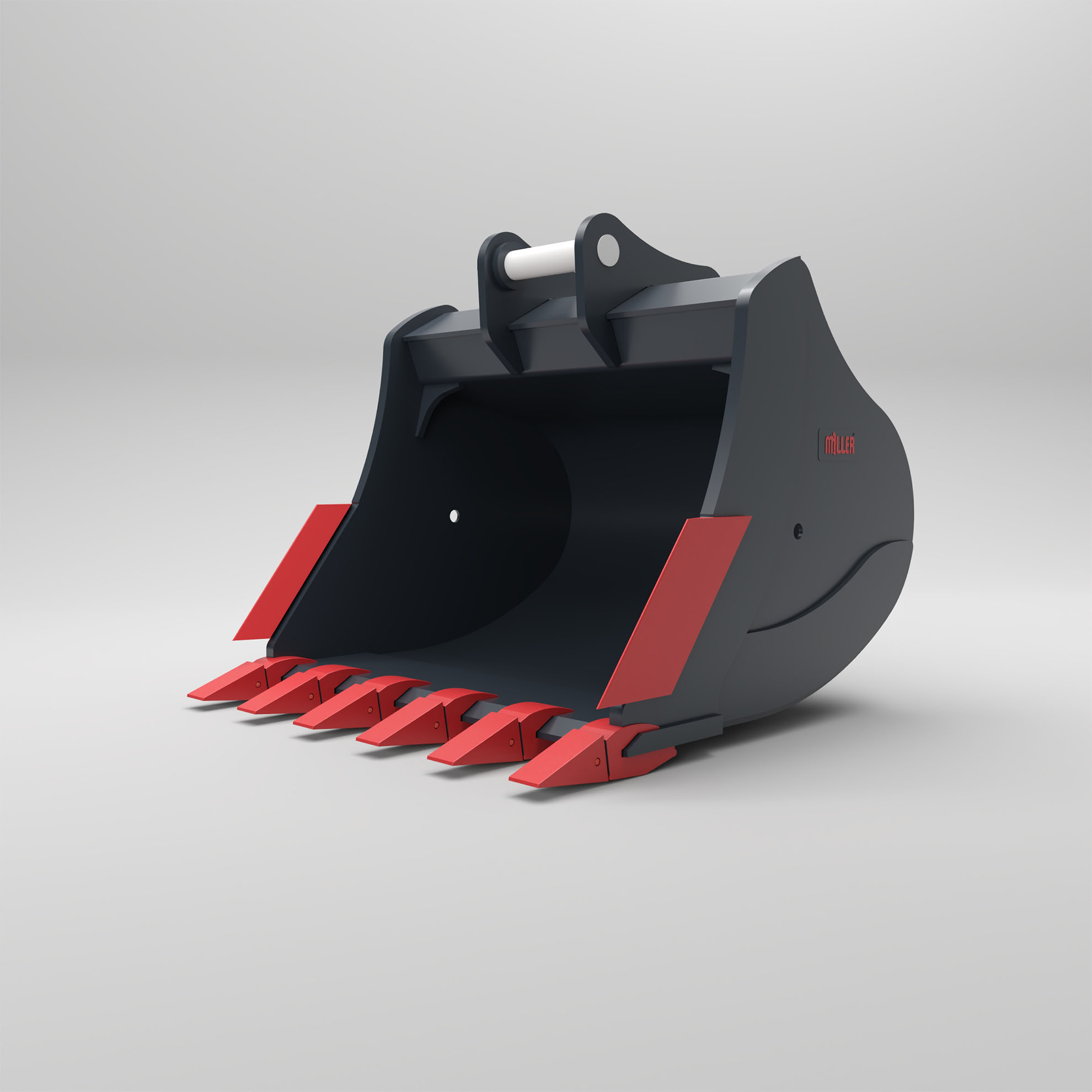

Digging Bucket - Image 3
Digging Bucket - Image 4
Digging Bucket - Image 5
Digging Bucket - Image 6

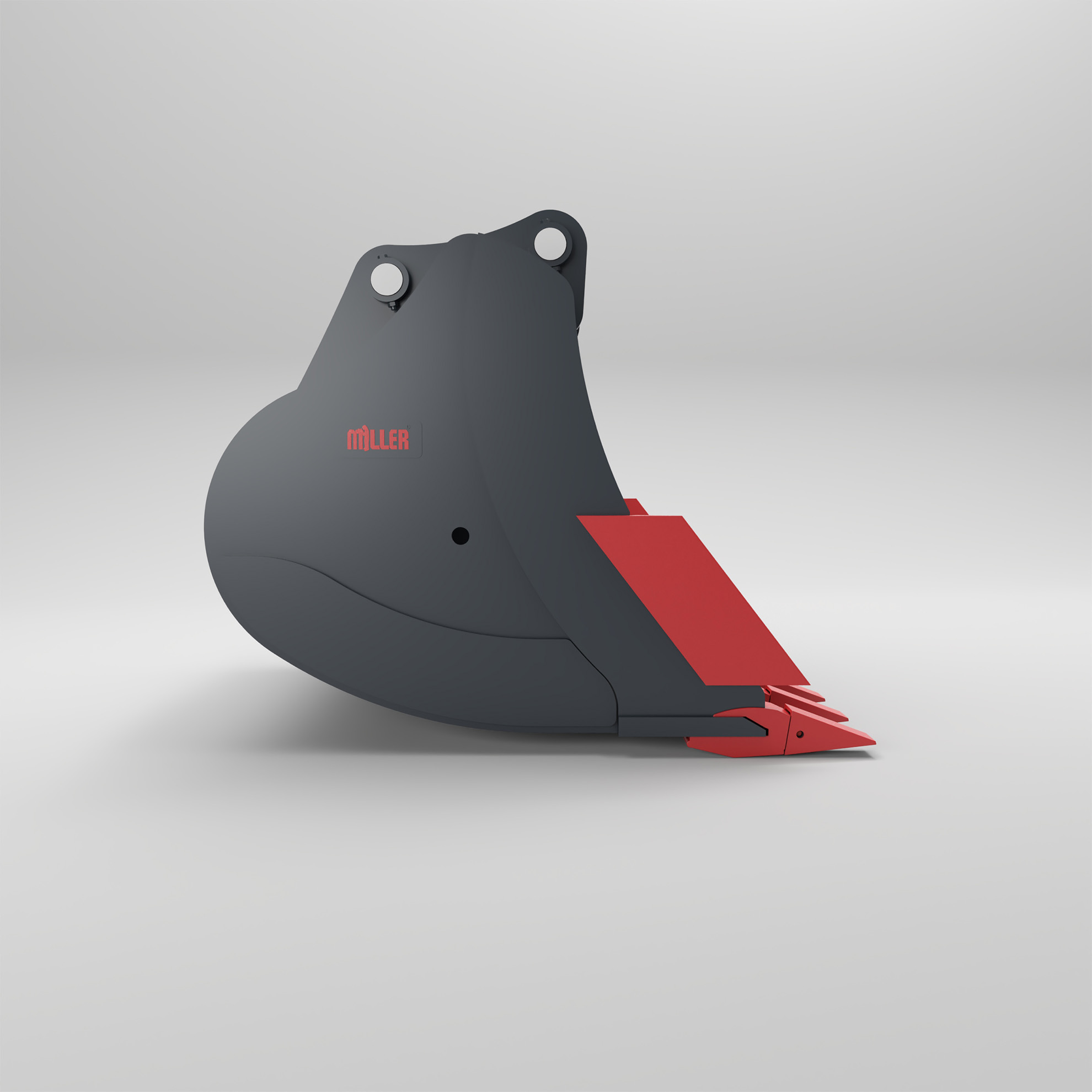

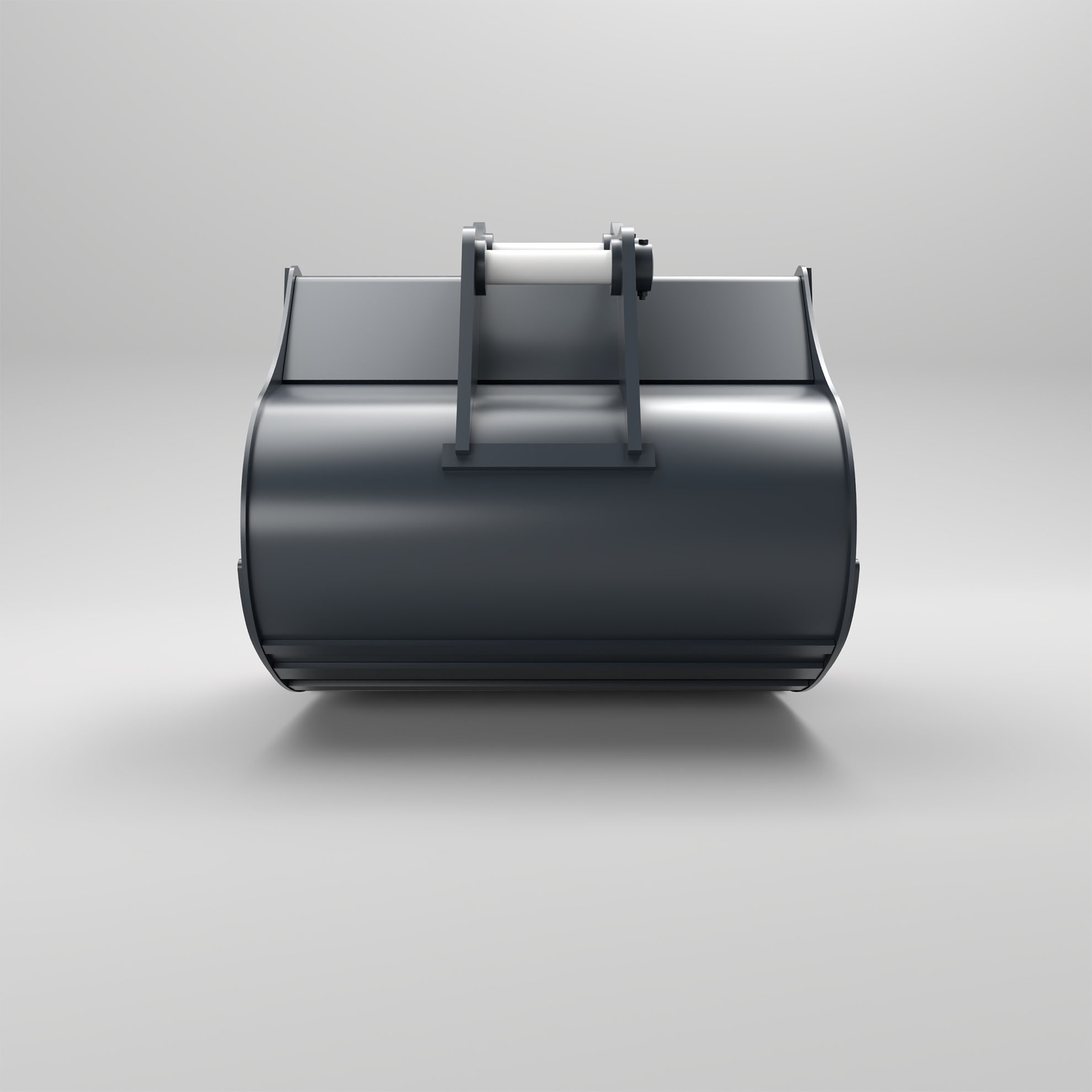

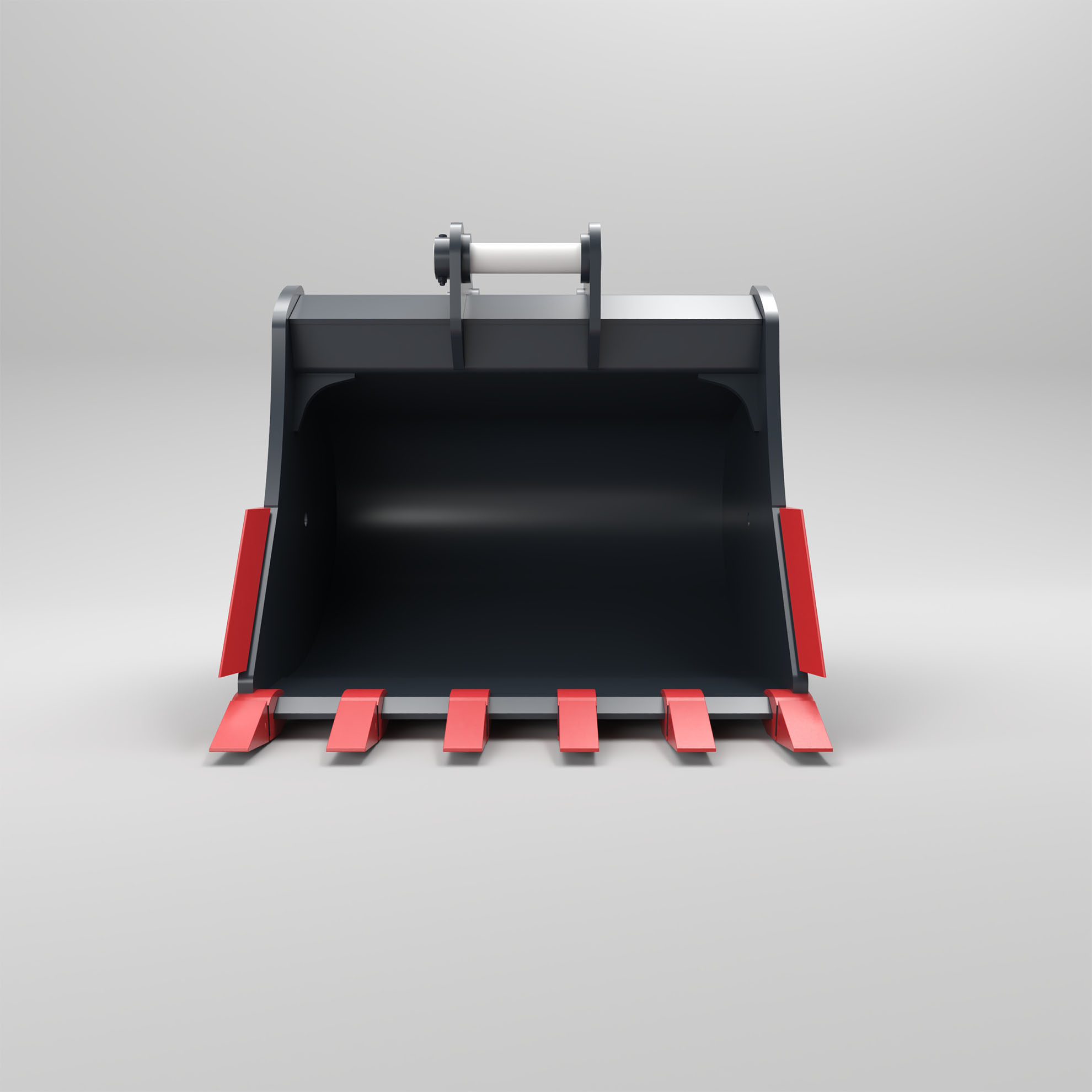

HEAVY DUTY

Digging Bucket

8 - 95t

Ideal for work that requires low abrasion, our heavy duty digging buckets have been designed to withstand full machine force providing greater machine stability. Optimised in weight and capacity, the buckets deliver up to 100% fill factor, maximising machine output whilst improving fuel savings.

MOUNTING OPTIONS:
GET OPTIONS:
Universal Arms

Universal Arms

(8-45t as standard)
Direct Mount

Direct Mount

(8-45t made to order, 45-95t as standard)
Bolt-on Edge

Bolt-on Edge

(8-25t)
Weld-on Edge

Weld-on Edge

(8-25t)
Light Duty Teeth

Light Duty Teeth

(8-10t)
Heavy Duty Teeth

Heavy Duty Teeth

(8-95t)
Rock Teeth

Rock Teeth

(45-95t)
View Features Order Now

RECOMMENDED APPLICATIONS:

Low abrasive excavation. Ideal for muckshift, overburden removal and land clearance.

KEY SPECIFICATIONS

BUCKET SIZING

Range (t)
Width (mm)
Capacity (m3)
Weight (kg)
8-10
450
600
750
900
0.16
0.23
0.3
0.4
160
185
210
230
11-14
600
750
900
1100
1200
0.31
0.42
0.52
0.63
0.74
355
395
445
515
540
15-18
750
900
1100
1200
1350
0.50
0.63
0.76
0.90
1.03
480
535
585
635
675
19-21
750
900
1100
1200
1350
1500
0.60
0.76
0.92
1.09
1.25
1.42
660
730
800
865
920
995
22-27
750
900
1100
1200
1350
1500
1700
0.67
0.85
1.04
1.23
1.43
1.62
1.82
880
965
1060
1120
1215
1305
1400
29-30
750
900
1100
1200
1350
1500
1700
1750
0.71
0.91
1.16
1.32
1.53
1.74
2.02
2.10
1080
1185
1295
1395
1480
1565
1705
1730
30-35
900
1100
1200
1350
1500
1700
1750
1.02
1.25
1.48
1.71
1.95
2.19
2.34
1485
1610
1725
1825
2075
2105
36-45
1100
1200
1350
1500
1700
1750
1900
1.47
1.75
2.03
2.31
2.60
2.79
3.03
2280
2420
2555
2780
3015
3060
3200
45+
Application specific, please get in touch.

DRIVE COST SAVINGS WITH
OUR READY TO DIG BUNDLES

Our heavy duty digging buckets are available as a bundle with our bundle sets for machines sized 1-20t, allowing our customers to save money when bought together with our hydraulic hitches.

Find out more

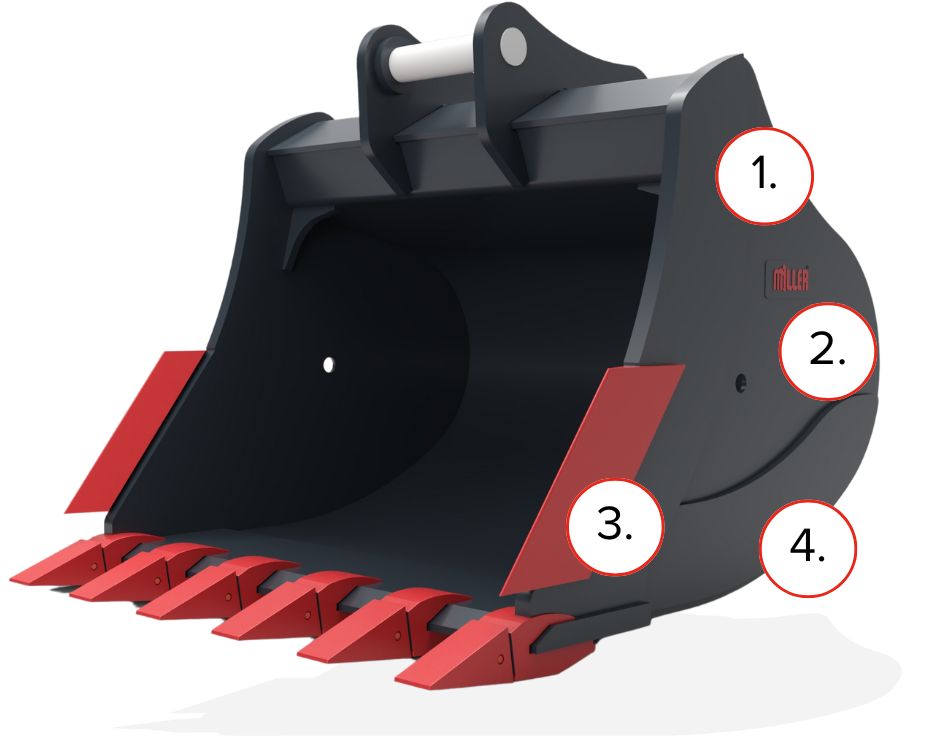

FEATURES

MAXIMUM
BREAKOUT FORCE

Miller’s heavy duty digging buckets are ideal for handling large loads. Our reinforced design allows increased fill capacity with zero tail drag, reducing maintenance costs.

  • 1
    DUAL RADIUS SHELL

    The dual radius shell has been designed with maximum resistance in high wear areas with further protection from the side cutters.

  • 2
    BOTTOM SIDE PLATE

    The bottom side plate - a high wear area - is armoured with increased resistance using additional high wear resistant steel.

  • 3
    SIDE CUTTER

    The side cutter has been designed with an arrow like shape allowing superior cutting through the ground.

  • 4
    EXTERNAL WEAR BARS

    External wearbars prolong the lifespan of the bucket with additional protection added to high wearing locations of the bucket.

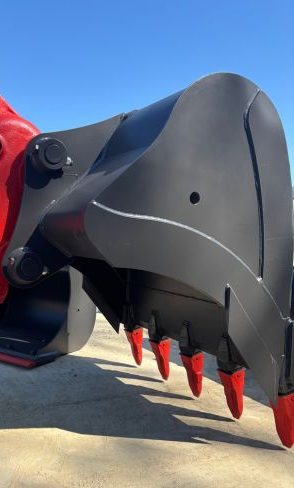

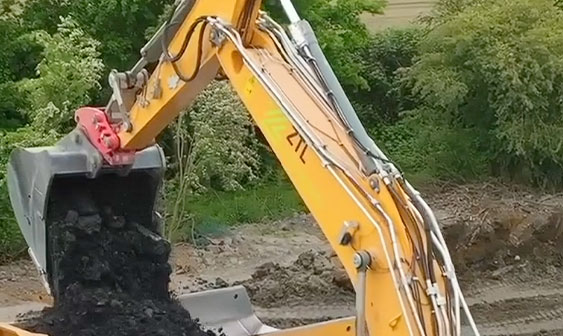

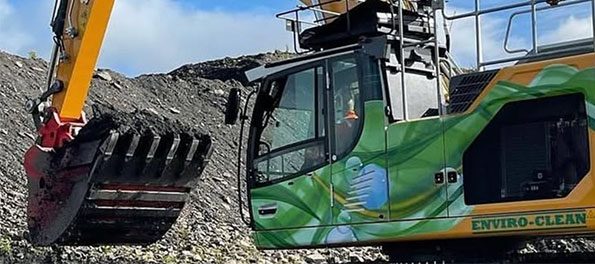

IN
