1 - 6t

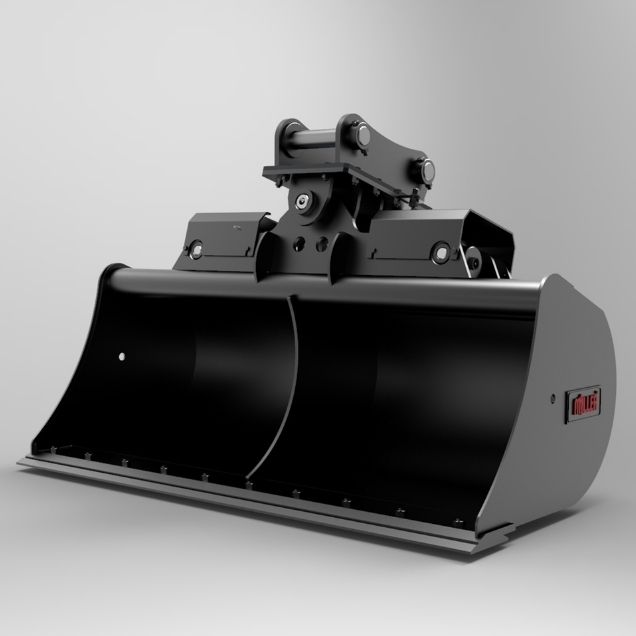

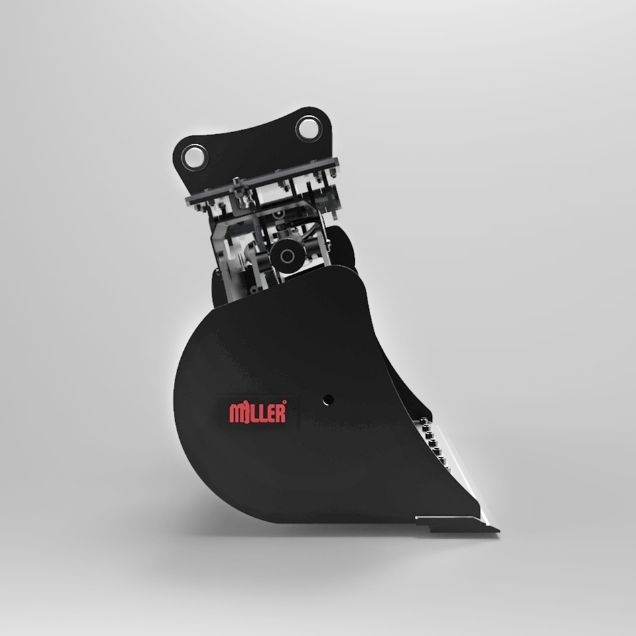

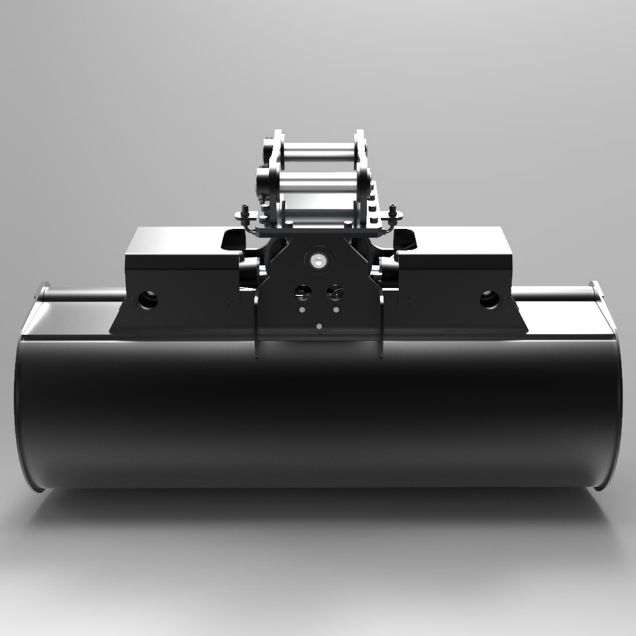

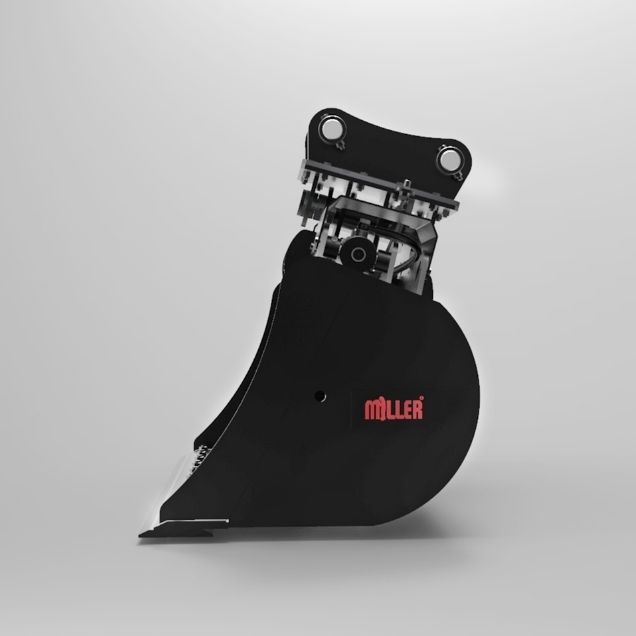

Ideal for side-angled trenches, landscaping or working where space and access are restricted, our mini tilt buckets have the capability to tilt laterally 45° providing greater versatility than a standard bucket.
Universal Pin
(1-6t as standard)
Bolt-on Edge
(1-6t as standard)RECOMMENDED APPLICATIONS:
Ideal for narrow channelling, cabling, pipe works.
KEY SPECIFICATIONS
Range (t) | Width (mm) | Capacity (m3) | Weight (kg) |
|---|---|---|---|
1-2 | 900 | 0.071 | 93 |
2-3 | 1100 | 0.132 | 233 |
3-6 | 1200 1400 | 0.174 0.296 | 185 267 |
Our heavy duty digging buckets are available as a bundle with our bundle sets for machines sized 1-20t, allowing our customers to save money when bought together with our hydraulic hitches.

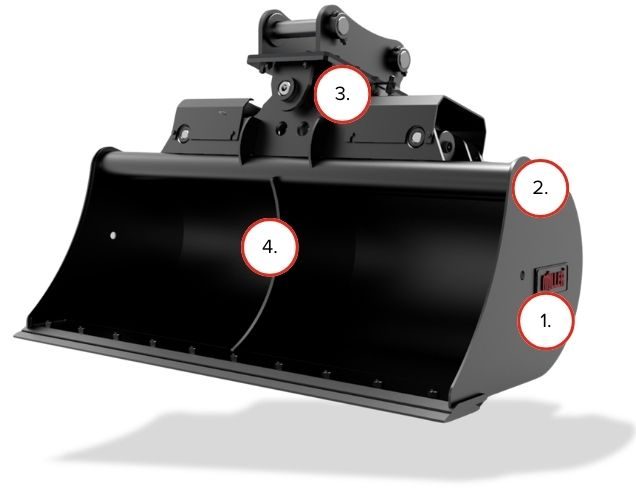

Find out moreFEATURES
Miller’s compact range has been designed for superior performance on light muckshifting duties, allowing for increased productivity.
The dual radius shell has been designed with maximum resistance in high wear areas with further protection from the side cutters.
The bottom side plate - a high wear area - is armoured with increased resistance using additional high wear resistant steel.

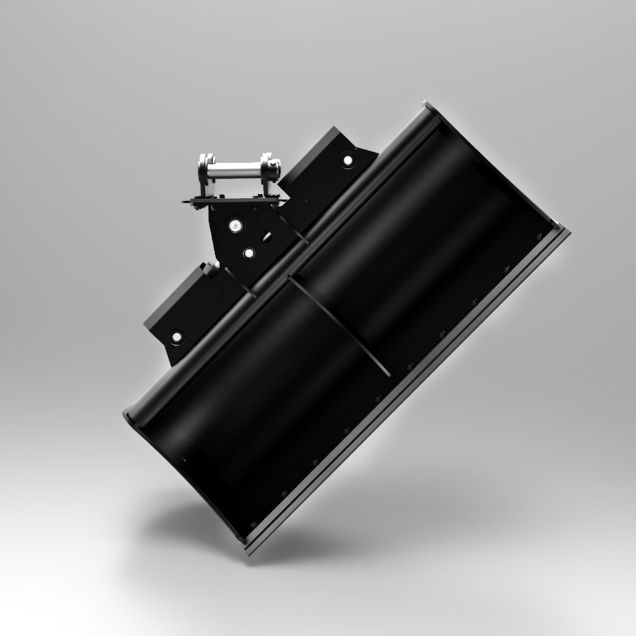

Allows the bucket to tilt laterally in both directions up to 45ᵒ.
Engineered using the highest grades of steel, the central plate gives the bucket added strength and rigidity.
